Product Summary

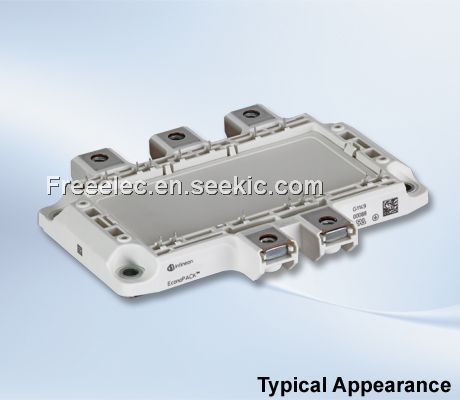

FS200R12PT4

Description:

EconoPACK? 4 1200V sixpack IGBT module with fast Trench/Fieldstop IGBT4, Emitter Controlled 4 diode, NTC and PressFIT Contact Technology

Summary of Features:

  • Extended Operation Temperature T(vj op)
  • Low Switching Losses
  • Low V(CEsat)
  • V(CEsat) with positive Temperature Coefficient
  • 2.5 kV AC 1min Insulation
  • High Power Density
  • Isolated Base Plate
  • Standard Housing

see all

Benefits:

  • Compact Modules
  • Easy and most reliable assembly
  • No Plugs and Cables required
  • Ideal for Low Inductive System Designs

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FS200R12PT4
FS200R12PT4

Infineon Technologies

IGBT Modules EconoPACK4 200A 1200V

Data Sheet

0-2: $234.60
FS200R12PT4-ENG
FS200R12PT4-ENG

Infineon Technologies

IGBT Modules EconoPACK 4 Module 200A 1200V

Data Sheet

Negotiable
